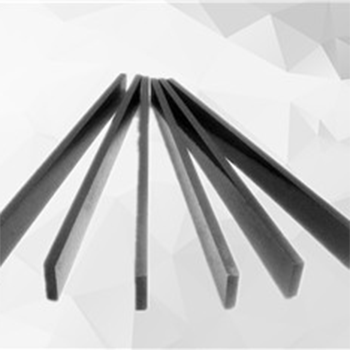

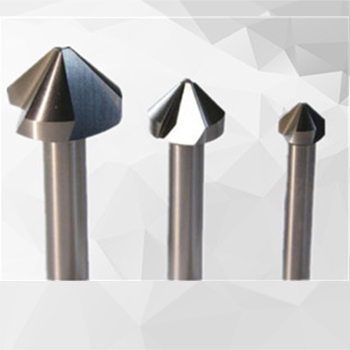

Backed by the quality high speed steel materials supplied by HSS Corp., we produce high speed steel cutting tools, such as Ground End Mills, Corner Rounding End Mills, Countersinks, Tool Bits & Cut-off Blades, Planer knives, Power Hacksaw Blades and etc. It is particularly proud that “HY” End Mills, as one Top Brand, firmly maintains one of the biggest market shares in China. Meanwhile, equipped by the advanced 5-Axis CNC Tool Grinders and the professional Tool Measuring Machine, we can manufacture CNC Precision Cutters, such as Solid Carbide Cutting Tools in standard and non-standard, PM and HSS-Co Cutting Tools, in top quality and top reliability. Keep striving to offer the comprehensive metal working solutions to the world.
All HSS cutting tools are produced by the advanced facility and capacity, which take the leads domestically, in HEYE quality HSS raw materials. Through the past 30 years’ development, the company establishes the largest production line of HSS Fully Ground End Mills in China. Capable to offer HSS End Mills in all materials – including HSS, HSS-Co and PM, standards – including GB, DIN, ANSI, BS, JIS, GOST and etc. and full sizes in China.
Contributed by the years’ research and development, non-standard cutters could be designed and manufactured in the art of craftship, according to the practical demanding, as well as standard cutters, such as Carbide End Mills, Drills, Step Drills, Reamers and various profile cutters. High Precision, High Speed, High Efficiency, High Reliability and Fast Delivery. High Efficiency End Mills for Alu., for Nickle Based Stainless Steel & Heat Resistent Alloy could be offered.
The products are widely used in in automobile manufacturing, high-speed rail, aerospace, 5G communication and other metal processing fields, such as hole, keyway, cavity and surface processing. It can provide cutting scheme suitable for various metal materials (steel, cast iron, nonferrous, nickel based stainless steel, titanium alloy and other difficult-to-machining materials), composite materials, graphite and other materials.

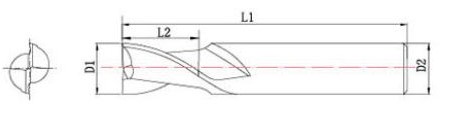

| End Mill | ||||
| Two Flute Standard | ||||
| Edge diameter | Stem diameter | Blade length | Total length | Blade number |
| D1 | D2 | L2 | L1 | Z |
| e8 | h6 | js18 | js18 | No. |
| 1 | 6 | 5 | 49 | 2 |
| 1.5 | 6 | 7 | 51 | 2 |
| 2 | 6 | 7 | 51 | 2 |
| 3 | 6 | 8 | 52 | 2 |
| 4 | 6 | 11 | 55 | 2 |
| 5 | 6 | 13 | 57 | 2 |
| 6 | 6 | 13 | 57 | 2 |
| 7 | 8 | 16 | 66 | 2 |
| 8 | 8 | 19 | 69 | 2 |
| 9 | 10 | 19 | 69 | 2 |
| 10 | 10 | 22 | 72 | 2 |
| 11 | 12 | 22 | 79 | 2 |
| 12 | 12 | 26 | 83 | 2 |
| 13 | 12 | 26 | 83 | 2 |
| 14 | 12 | 26 | 83 | 2 |
| 15 | 16 | 32 | 92 | 2 |
| 16 | 16 | 32 | 92 | 2 |
| 17 | 16 | 32 | 92 | 2 |
| 18 | 16 | 32 | 92 | 2 |
| 19 | 20 | 38 | 104 | 2 |
| 20 | 20 | 38 | 104 | 2 |
| 22 | 20 | 38 | 104 | 2 |
| 24 | 25 | 45 | 121 | 2 |
| 25 | 25 | 45 | 121 | 2 |
| 28 | 25 | 45 | 121 | 2 |
| 30 | 25 | 45 | 121 | 2 |
| 32 | 32 | 53 | 133 | 2 |
| 34 | 32 | 53 | 133 | 2 |
| 36 | 32 | 53 | 133 | 2 |
| 40 | 40 | 63 | 155 | 2 |
