Antainano® is an iron-based soft magnetic alloy materials with nanocrystalline structures (grain size ~10nm). With excellent soft-magnetic properties such as high saturation flux density (Bs), high permeability, and low core loss, it is widely used in electrical power, industrial power supply, renewable energy, railway & transportation, consumer electronics, wireless charging, etc.

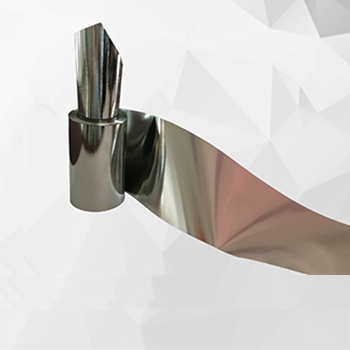

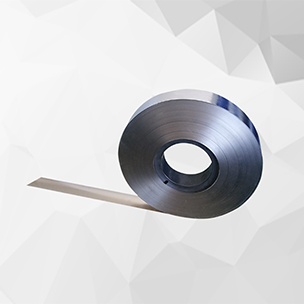

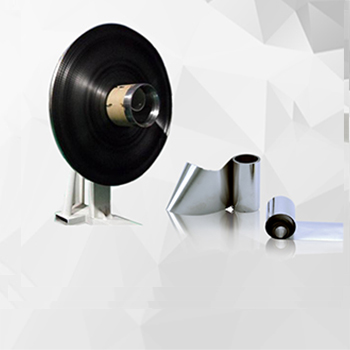

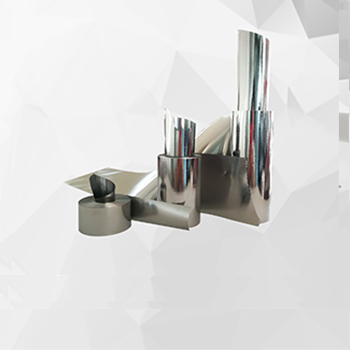

Antainano® products are available as high precision iron-based nanocrystalline ribbon in thickness from 14 µm to 26 µm and widths from 2 mm to 80 mm, which can be made into various magnetic components including cores, devices, shielding sheets, etc. They can meet the performances of high frequency and low core loss simultaneously, and facilitate the development of electronic equipment towards the trend of high frequency, miniaturization, and lightweight.
Compared with traditional ferrite, nanocrystalline soft magnetic alloy materials have high saturation flux density (≥1.2T), low core losses, low coercivity, low or zero magnetostriction, wide adjustable permeability in the range from 400 to 900,000, and excellent thermal stability, making it an ideal choice for high-frequency power electronics.
Antainano® ribbon is mainly applied in the production of advanced common mode chokes, high frequency power transformers, precision current transformers, magnetic amplifiers and magnetic shielding sheets, etc.
| Product Code | Available Thickness | Stacking Factor | Saturation Flux Density | Coercivity | Application (For Reference) | ||||||||||||
| High Frequency Power Transformer (HFPT) | Common Mode Choke (CMC) | Current Transformer (CT) | Wireless Power Transmission (WPT) | ||||||||||||||
| t [μm] | % | Bs[T] | Hc[A/m] | Select | Pcm [W/kg] (20kHz,0.5T) |
μ0.08 | Select | Pcm [W/kg] (100kHz,0.3T) |
μ (10kHz) |
μ (100kHz) |
Select | μi (50Hz) | μm (50Hz) | Select | Pcm [W/kg] (100kHz,0.3T) |
μ (100kHz) |
|
| 1K107B | 23-26 | 78-84 | 1.24 | ≤1.5 | √ | ≤20 | 30,000~60,000 | \ | \ | \ | \ | √ | 85,000 | 500,000 | \ | \ | \ |
| 20-23 | 78-84 | √ | ≤15 | 30,000~60,000 | √ | ≤80 | 80,000 | 15,000 | √ | 80,000 | 500,000 | \ | \ | \ | |||
| 17-20 | 75-82 | √ | ≤12 | 30,000~60,000 | √ | ≤70 | 75,000 | 25,000 | \ | \ | \ | \ | \ | \ | |||
| 14-17 | 75-82 | \ | \ | \ | √ | ≤60 | 70,000 | 30,000 | \ | \ | \ | \ | \ | \ | |||
| 1K107BW | 22-28 | 78-84 | 1.24 | ≤1.5 | √ | ≤15 | \ | √ | ≤85 | 80,000 | 15,000 | √ | 140,000 | 500,000 | \ | \ | \ |
| 1K107E | 18-22 | 78-84 | 1.24 | ≤1.5 | \ | \ | \ | \ | \ | \ | \ | √ | 150,000 | 500,000 | \ | \ | \ |
| 1K107O | 22-28 | 78-84 | 1.24 | ≤1.5 | \ | \ | \ | \ | \ | \ | \ | √ | 140,000 | 900,000 | \ | \ | \ |
| 1K107W | 14-26 | 75-84 | 1.24 | ≤1.5 | \ | \ | \ | \ | \ | \ | \ | √ | \ | \ | √ | ≤80 | ≥12,000 |
| 1K107H | 18-26 | 78-84 | 1.40 | ≤2.5 | \ | \ | \ | \ | \ | \ | \ | \ | \ | \ | √ | ≤110 | ≥14,000 |
| FN-200 | 20-23 17-20 |
78-84 | 1.25 | ≤2.0 | \ | \ | \ | √ | ≤90 | 20,000 | 12,000 | \ | \ | \ | \ | \ | \ |
| FN-100 | 78-84 | ≤2.5 | \ | \ | \ | √ | ≤90 | 8,500 | 7,500 | \ | \ | \ | \ | \ | \ | ||
| FN-080 | 78-84 | ≤2.5 | \ | \ | \ | √ | ≤90 | 5,500 | 5,000 | \ | \ | \ | \ | \ | \ | ||
| FN-035 | 78-84 | ≤3.0 | \ | \ | \ | √ | ≤90 | 4,500 | 4,500 | \ | \ | \ | \ | \ | \ | ||
